8-Bay NAS Mini ITX 10Gbps NAS Motherboard Adaptable to Support 8sata One 10Gbps Electrical Port Two 2.5G Electrical Ports Two m.2 nvme Two pcie3.0 Type-c 10Gbps (N150+2x8643)
Product details
| Management number | 209077706 | Release Date | 2026/03/29 | List Price | $107.60 | Model Number | 209077706 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
17CM*17CM standard ITX form factor ATX-24Pin+4Pin power supply 1 SO-DIMM DDR5 4800MHz slot, supporting up to 48G 1 Marvell AQC113C 10GBASE-T port + 2 Intel i226-V 2.5GBASE-T ports 2 SFF-8643 terminals (1-to-4) for 8 SATA3.0 ports 2 M.2 PCIe3.0x1 NVMe 2280 sockets 1 HDMI2.0 + 1 DP1.4 dual display, both supporting 4K@60HZ 1 USB3.2 (USB-A) + 1 Type-C (USB-C) with 10Gbps speed 1 PCI-E3.0 x1 signal break-out slot compatible with x1/x4/x8 expansion cards 1 USB2.0 female port + 1 USB3.0 female port + 1 Type-E female port 1 M.2 PCIe&CNVi WiFi slot, supporting AX210 and WiFi6e modules 1 TF card slot for storage and partial system booting
- The courier service offers different speed options; Default to the fastest speed

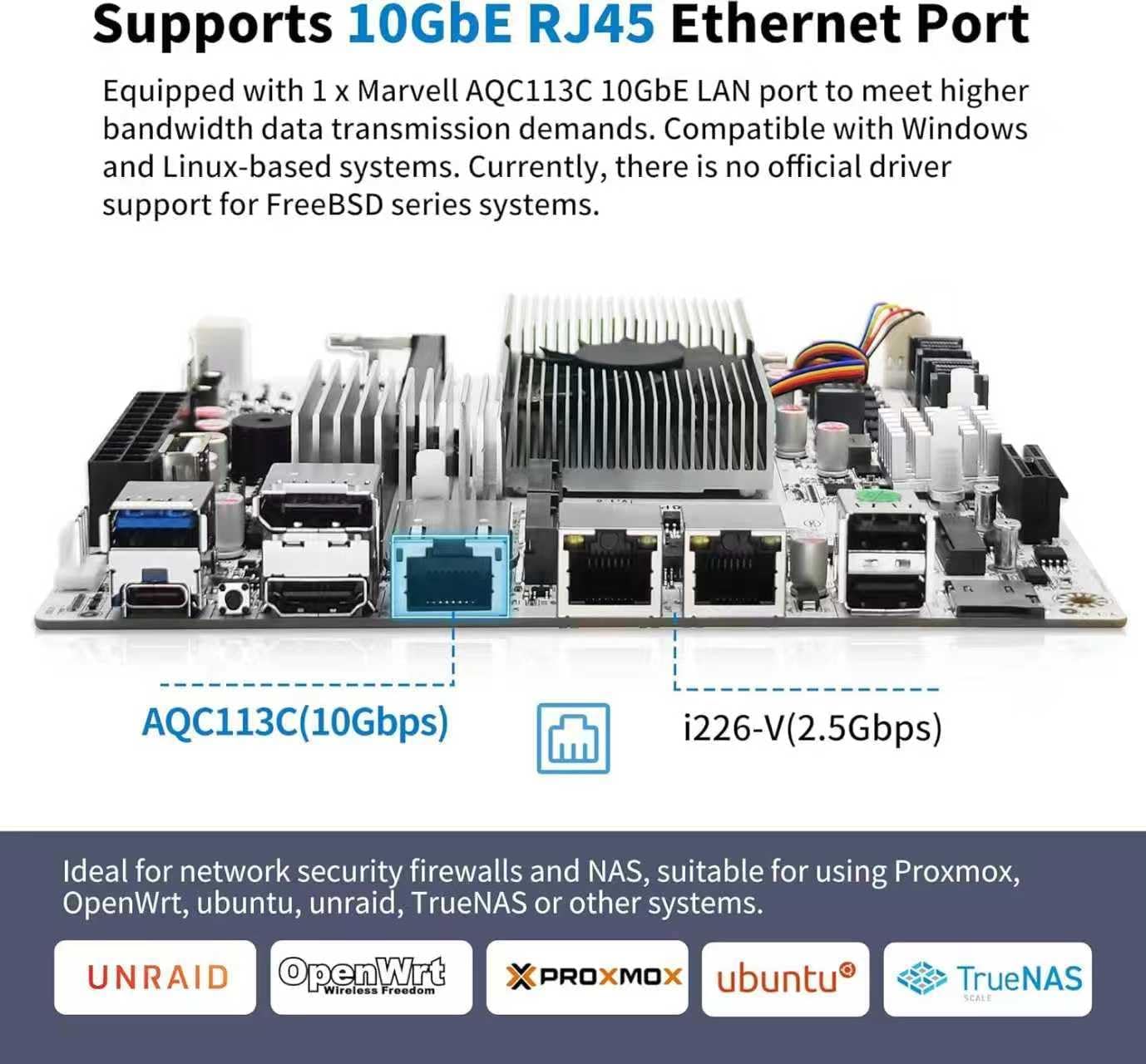

- High Productivity: 1 SO-DIMM DDR5 memory slot supports 4800MHz by default; 2*M.2 NVMe PCle 3.0x1 signals, 8*SATA3.0 (2 ASM1164 chip extensions), 1*TF card storage, 1*MarvellAOC113C-B1-C RJ45 10G electrical port 2*Intel i226- V RJ45 2.5G electrical port.
- Dual 4K monitors: This mini-ITX board has HDMI2.0 and DP1.4 ports and supports 4K@60Hz frequencies.
- SIZE AND BASIC FEATURES: The white NAS board is powered by the N100 N150 N305 N355C processor, which comes in a 6.7“ x 6.7” mini-ITX form factor, has a base TDP of 50W, and supports Windows 10/11, Linux, and Linux.
- Note: You can contact our customer service for any product questions or suggestions. We serve every customer seriously around the clock. We look forward to receiving your support. Customers are family
| Brand | oaknode |
|---|---|
| CPU Model | Intel N100 |
| Model Name | N150+2x8643 |
| Manufacturer | China |
| Model Number | N150+2x8643 |
| Number of Ports | 21 |
| Processor Socket | Socket AM4 |
| Total PCIe Ports | 1 |
| Total SATA Ports | 8 |
| Compatible Devices | Server, High-end Workstation |
| Memory Clock Speed | 4800 MHz |
| Warranty Description | a year |
| Compatible Processors | N100, N150, N305, N355C |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 48 GB |
| Ram Memory Maximum Size | 48 GB |
| Number of Ethernet Ports | 3 |
| Main Power Connector Type | 24-Pin, 4-Pin |
| Total Number of HDMI Ports | 1 |
