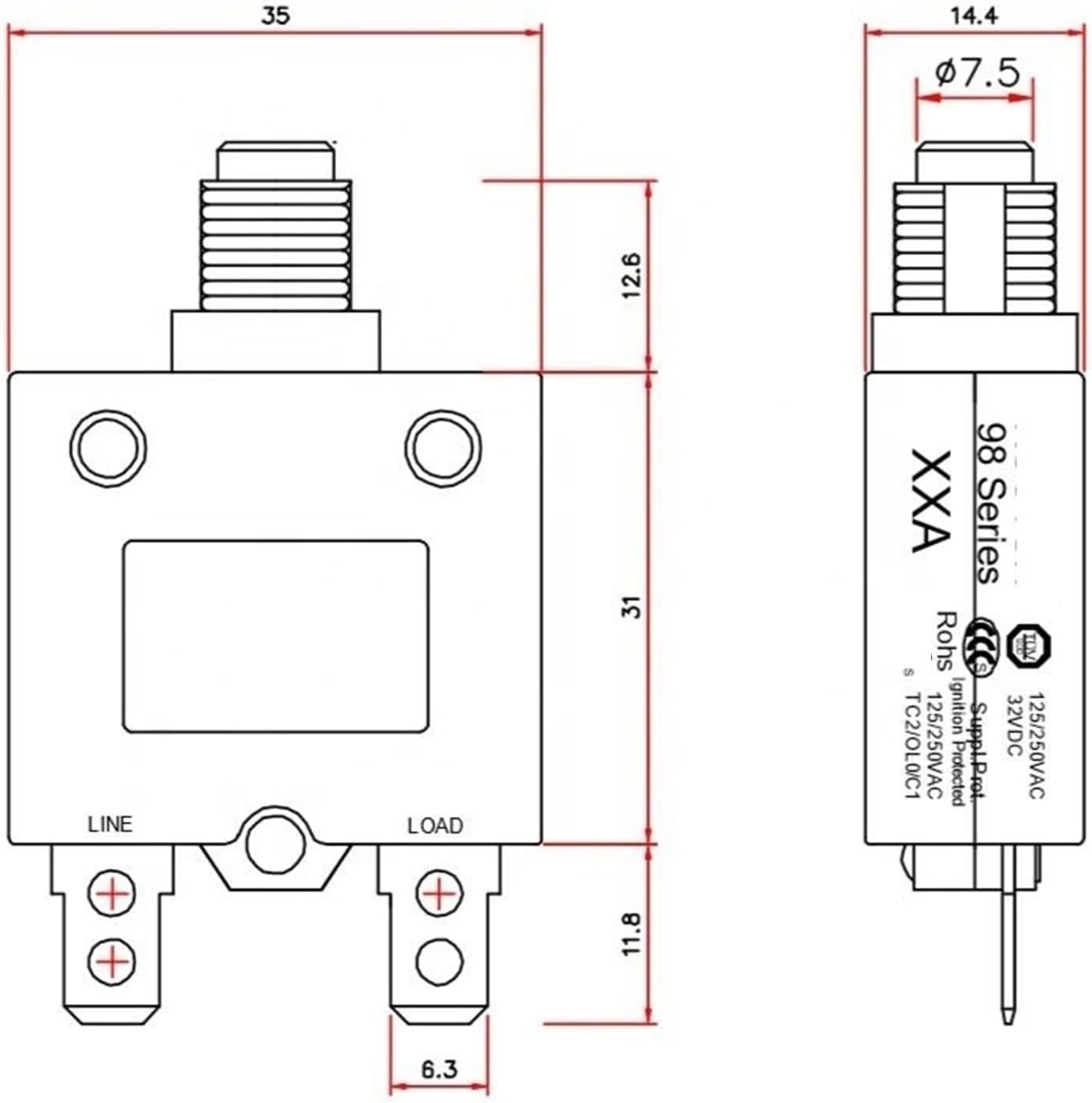

MOBYAT 98 Series 8A 250VAC Manual Reset Thermal Overload Switch Mini Circuit Breaker 1Pcs (Size : with Cap, Color : 20A)
Product details
| Management number | 210099088 | Release Date | 2026/04/02 | List Price | $12.40 | Model Number | 210099088 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Thermal Circuit BreakersProduct DescriptionCurrent Rating Range3~50AInput Voltage rating125/250VAC,32VDCWithstand voltage strength<;0.5mACertificationCUL UL TUV CCC VDE SAAInsulation resistance500VDC 1Min >100MRated short-circuit capacity125VAC/1000A;250VAC/1000ARated breaking capacity6 times rated currentResetManual Push ResetMechanical/Environmental DataOperating Ambient Temperature: -10 to +60Mounting: Various options. See Ordering Information and drawingsTermination: 250''(6.35mm)quick connects or solder terminalsCalibration(at25)100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 HourApprovalApproval & File No Rated current Rated voltageCUL UL E155159 350A 125250VAC; 50VDCTUV SUD B15 09 58611 007 3-30A 125/250VAC; 32VDCCCC 201101030752058 3-30A 125/250VAC.VDE 40036160 3-16A 125/250VACCSA 102199 3-30A 125VACTypical applicationsTypical applicationsTarnsforms, Motors, Battery chargers, Power suppliesappliances, extra low voltage systems, machineryappliances, extra low voltage systems, machineryRelated Products88 series91 series92 series94n series98 seriesar series
- Thermal Circuit Breakers
| Brand Name | MOBYAT |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Part Number | MOBYAT |
| Manufacturer | MOBYAT |
